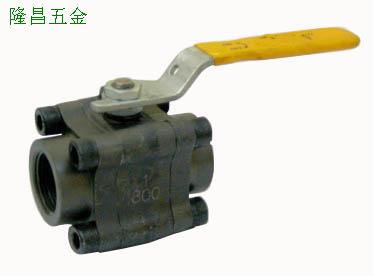

Q61F三片式鍛鋼球閥
| 性能規范Specifications |
Nominal pressure:PN CLASS 800/900/1500
|
| |
Strength testing pressure:PT 20.7/22.5/37.5MPa |
| 公稱壓力:PN CLASS 800/900/1500 |
Seat testing pressure(low pressure):0.6MPa |
| 強度試驗壓力：PT 20.7/22.5/37.5MPa |
Applicable media: |
|
|
| 低壓氣密封試驗壓力：0.6MPa |
Q11F-(800-1500LB)C Water.Oil.Gas |
|
| 適用介質：Q11F-(800-1500LB)C 水，油品，氣 |
Applicable temperature:-29～280℃ |
|
| 適用溫度：-29～280℃ |
Applicable media: |
|
|
| 適用介質：Q11F-(800-1500LB)P 硝酸類 |
Q11F-(800-1500LB)P Nitric acid |
|
| Q11F-(800-1500LB)R 醋酸類 |
Q11F-(800-1500LB)R Acetic acid |
|
| 適用溫度：-40～280℃ |
Applicable temperature:-40～280℃ |
主要零件材料Materials of main parts
|
零件名稱
Description of parts
|
Q11F-(800-1500LB)C |
|
|
|
|
|
|
|
| 閥蓋 Bonnet |
A105 |
F304
0Cr18Ni9
|
F316i
0Cr17Ni12Mo2
|
|
|
|
|
|
|
|
|
|
|
|
|
聚四氟乙烯Polytetrafluorethylene(PTEE) |
|
|
聚四氟乙烯Polytetrafluorethylene(PTEE) |
主要外形尺寸Main outer size(800LB)
| DN |
G RC/NPT |
d |
L |
H |
W |
| 15 |
1/2" |
12 |
65 |
53 |
120 |
|
20
|
3/4" |
15 |
73 |
55 |
120 |
| 25 |
1" |
20 |
88 |
62 |
150 |
| 32 |
1¼" |
25 |
105 |
68 |
150 |
| 40 |
1½" |
32 |
116 |
87 |
185 |
| 50 |
2" |
38 |
128 |
92 |
210 |
