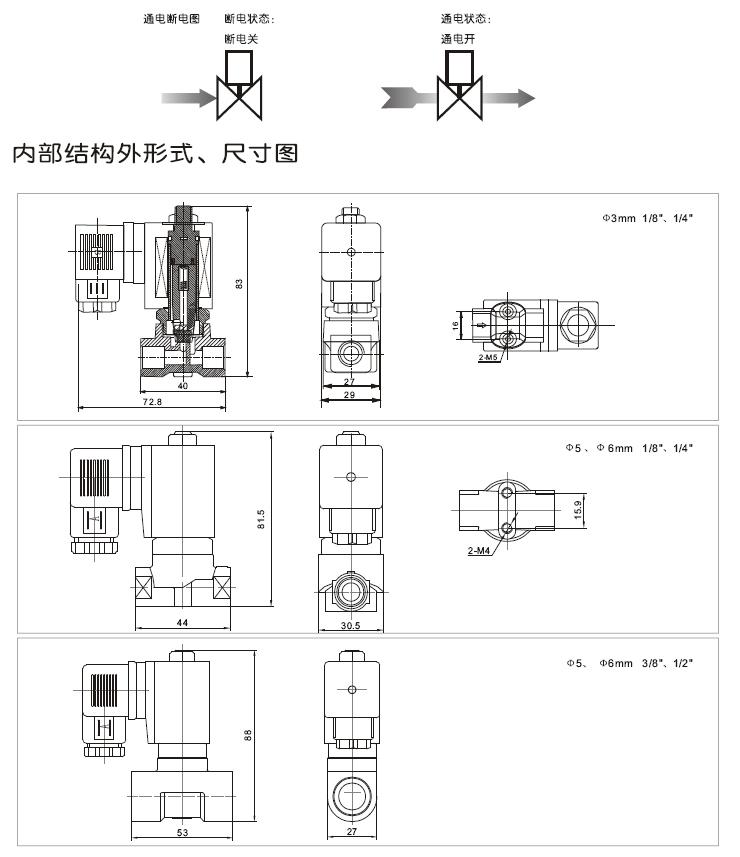

二位二通常閉型電磁閥,斷電關閉,通電打開;產品為系列化生產,體積小,流量大,適用范圍廣
閥體材質為:鍛銅、SS316不銹鋼
環境溫度:0℃～65℃ 介質溫度:0℃～130℃
安裝 :按閥上所標流向箭頭,可任意安裝.為增強使用壽命,最好線圈向上,水平安裝
電壓：AC24V/110V/220V/230V/240V 50/60HZ DC24V/12V ±10%允許波動可選配德國NASS線圈
防爆線圈:合格證號:GYB03616X 防爆標志:ExmI//‖T4 符合標準: GB3836.1-2000、GB3836.9-1990
密封件:可采用NBR、VITON、EPDM等多種，以適用不同流體的開關控制。

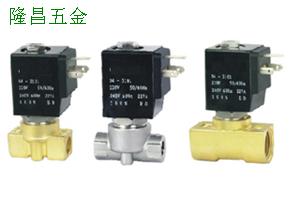

SLP二位二通微型系列直動式電磁閥<常閉型>
型號規格表
接管
口徑 |
流量
通徑
mm |
CV值 |
壓力差（Kgf/cm2) |
最大
溫度
℃ |
線圈
配置 |
功率 |
線圈等級 |
訂貨型號規格以下表中
型號規格電壓是220VAC |
重量KG |
最小
壓力 |
最大工作壓力 |
VA |
W |
空氣
瓦斯 |
水、熱水液體 |
輕油≤20CST |
AC220V |
DC24V |
閥體材料 |
| AC |
DC |
AC |
DC |
AC |
DC |
鍛銅 |
不銹鋼SS316 |
| 1/8” |
3 |
0.23 |
0 |
13 |
13 |
13 |
13 |
10 |
10 |
80 |
D |
22 |
13 |
F |
SLP1DF02N1A03 |
SLP1DF02N3A03 |
0.37 |
| 3 |
0.23 |
0 |
13 |
13 |
13 |
13 |
|
|
130 |
D |
22 |
13 |
F |
SLP1DF02E1A03 |
SLP1DF02E3A03 |
0.37 |
| 3 |
0.23 |
0 |
13 |
13 |
13 |
13 |
10 |
10 |
120 |
D |
22 |
13 |
F |
SLP1DF02V1A03 |
SLP1DF02V3A03 |
0.37 |
| 5 |
0.65 |
0 |
4 |
2.5 |
4 |
2.5 |
2.5 |
2 |
80 |
D |
22 |
13 |
F |
SLP1DF02N1A05 |
SLP1DF02N3A05 |
0.36 |
| 5 |
0.65 |
0 |
4 |
2.5 |
4 |
2.5 |
|
|
130 |
D |
22 |
13 |
F |
SLP1DF02E1A05 |
SLP1DF02E3A05 |
0.36 |
| 5 |
0.65 |
0 |
4 |
2.5 |
4 |
2.5 |
2.5 |
2 |
120 |
D |
22 |
13 |
F |
SLP1DF02V1A05 |
SLP1DF02V3A05 |
0.36 |
| 6 |
0.8 |
0 |
3 |
2 |
3 |
2 |
2.5 |
2 |
80 |
D |
22 |
13 |
F |
SLP1DF02N1A06 |
SLP1DF02N3A06 |
0.36 |
| 6 |
0.8 |
0 |
3 |
2 |
3 |
2 |
|
|
130 |
D |
22 |
13 |
F |
SLP1DF02E1A06 |
SLP1DF02E3A06 |
0.36 |
| 6 |
0.8 |
0 |
3 |
2 |
3 |
2 |
2.5 |
2 |
120 |
D |
22 |
13 |
F |
SLP1DF02V1A06 |
SLP1DF02V3A06 |
0.36 |
| 1/4” |
3 |
0.23 |
0 |
13 |
13 |
13 |
13 |
10 |
10 |
80 |
D |
22 |
13 |
F |
SLP1DF02N1B03 |
SLP1DF02N3A03 |
0.36 |
| 3 |
0.23 |
0 |
13 |
13 |
13 |
13 |
|
|
130 |
D |
22 |
13 |
F |
SLP1DF02E1B03 |
SLP1DF02E3A03 |
0.36 |
| 3 |
0.23 |
0 |
13 |
13 |
13 |
13 |
10 |
10 |
120 |
D
|
22 |
13 |
F |
SLP1DF02V1B03 |
SLP1DF02V3A03 |
0.36 |
| 5 |
0.65 |
0 |
4 |
2.5 |
4 |
2.5 |
2.5 |
2 |
80 |
D |
22 |
20 |
F |
SLP1DF02N1B05 |
SLP1DF02N3A05 |
0.35 |
| 5 |
0.65 |
0 |
4 |
2.5 |
4 |
2.5 |
|
|
130 |
D |
22 |
13 |
F |
SLP1DF02E1B05 |
SLP1DF02E3A05 |
0.35 |
| 5 |
0.65 |
0 |
4 |
2.5 |
4 |
2.5 |
2.5 |
2 |
120 |
D |
22 |
13 |
F |
SLP1DF02V1B05 |
SLP1DF02V3A05 |
0.35 |
| 6 |
0.8 |
0 |
3 |
2 |
3 |
2 |
2.5 |
2 |
80 |
D |
22 |
13 |
F |
SLP1DF02N1B06 |
SLP1DF02N3A06 |
0.35 |
| 6 |
0.8 |
0 |
3 |
2 |
3 |
2 |
|
|
130 |
D |
22 |
13 |
F |
SLP1DF02E1B06 |
SLP1DF02E3A06 |
0.35 |
| 6 |
0.8 |
0 |
3 |
2 |
3 |
2 |
2.5 |
2 |
120 |
D |
22 |
13 |
F |
SLP1DF02V1B06 |
SLP1DF02V3A06 |
0.35 |
| 3/8” |
5 |
0.65 |
0 |
7 |
2.5 |
4 |
2.5 |
2.5 |
2 |
80 |
D |
22 |
13 |
F |
SLP1DF02N1C05 |
SLP1DF02N3A05 |
0.46 |
| 5 |
0.65 |
0 |
7 |
2.5 |
4 |
2.5 |
|
|
130 |
D |
22 |
13 |
F |
SLP1DF02E1C05 |
SLP1DF02E3A05 |
0.46 |
| 5 |
0.65 |
0 |
7 |
2.5 |
4 |
2.5 |
2.5 |
2 |
120 |
D |
22 |
13 |
F |
SLP1DF02V1C05 |
SLP1DF02V3A05 |
0.46 |
| 6 |
0.8 |
0 |
5 |
2 |
3 |
2 |
2.5 |
2 |
80 |
D |
22 |
13 |
F |
SLP1DF02N1C06 |
SLP1DF02N3A06 |
0.46 |
| 6 |
0.8 |
0 |
5 |
2 |
3 |
2 |
|
|
130 |
N |
22 |
13 |
F |
SLP1DF02E1C06 |
SLP1DF02E3A06 |
0.46 |
| 6 |
0.8 |
0 |
5 |
2 |
3 |
2 |
2.5 |
2 |
120 |
D |
22 |
13 |
F |
SLP1DF02V1C06 |
SLP1DF02V3A06 |
0.46 |
| 1/2” |
5 |
0.65 |
0 |
6 |
2.5 |
4 |
2.5 |
2.5 |
2 |
80 |
D |
22 |
13 |
F |
SLP1DF02N1D05 |
SLP1DF02N3A05 |
0.43 |
| 5 |
0.65 |
0 |
6 |
2.5 |
4 |
2.5 |
|
|
130 |
D |
22 |
13 |
F |
SLP1DF02E1D05 |
SLP1DF02E3A05 |
0.43 |
| 5 |
0.65 |
0 |
6 |
2.5 |
4 |
2.5 |
2.5 |
2 |
120 |
D |
22 |
13 |
F |
SLP1DF02V1D05 |
SLP1DF02V3A05 |
0.43 |
| 6 |
0.8 |
0 |
4 |
2 |
3 |
2 |
2.5 |
2 |
80 |
D |
22 |
13 |
F |
SLP1DF02N1D06 |
SLP1DF02N3A06 |
0.43 |
| 6 |
0.8 |
0 |
4 |
2 |
3 |
2 |
|
|
130 |
D |
22 |
13 |
F |
SLP1DF02E1D06 |
SLP1DF02E3A06 |
0.43 |
| 6 |
0.8 |
0 |
4 |
2 |
3 |
2 |
2.5 |
2 |
120 |
D |
22 |
13 |
F |
SLP1DF02V1D06 |
SLP1DF02V3A06 |
0.43 |
