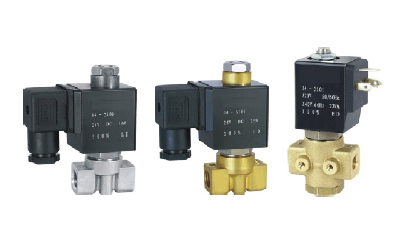

SLP二位二通微型系列直動式電磁閥<常開型>

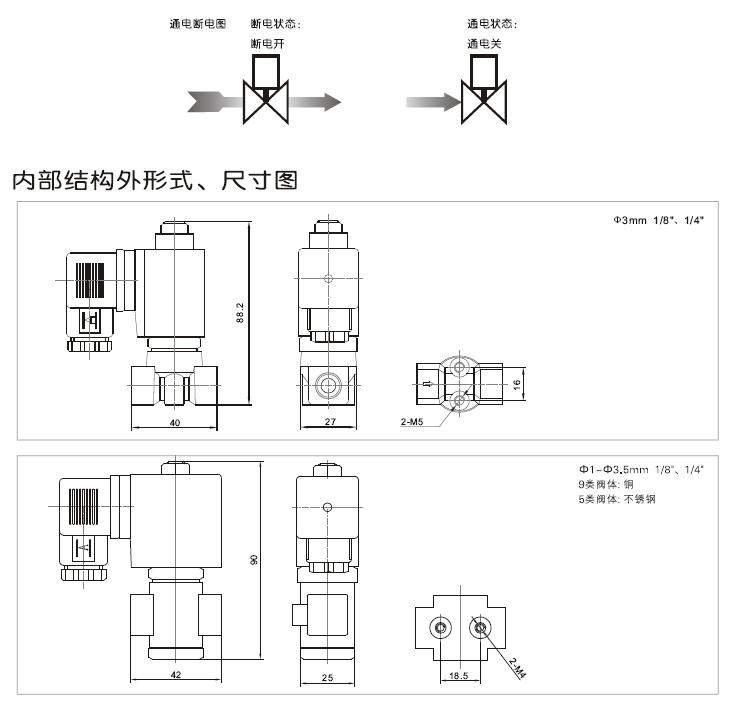

二位二通常開型電磁閥,斷電打開,通電關閉;體積小,流量大,適用范圍廣,性能穩定
閥體材質為:鍛銅、SS316不銹鋼
環境溫度:0℃～65℃ 介質溫度:0℃～130℃
安裝 :按閥上所標流向箭頭,為增強使用壽命和可靠性,最好線圈向上,水平安裝;
電壓：AC24V/110V/220V/230V/240V 50/60HZ DC24V/12V ±10%允許波動可選配德國NASS線圈
密封件:可采用NBR、VITON、EPDM等多種，以適用不同流體的開關控制
型號規格表
接管
口徑 |
流量
通徑
mm |
CV值 |
壓力差（bar) |
最大
溫度
℃ |
線圈
配置 |
功率 |
線圈
等級 |
訂貨型號規格以下表中
型號規格電壓是220VAC |
重量
KG |
最小
壓力 |
最大工作壓力 |
VA |
W |
空氣
瓦斯 |
水、
熱水液體 |
輕油 |
AC220V |
DC24V |
閥體材料 |
| 鍛銅 |
不銹鋼SS316 |
| 1/8” |
1 |
0.04 |
0 |
30 |
30 |
25 |
80 |
D |
22 |
13 |
F |
SLP2DF02N9A01 |
SLP2DF02N5A01 |
0.4 |
| 1 |
0.04 |
0 |
30 |
30 |
|
130 |
D |
22 |
13 |
F |
SLP2DF02E9A01 |
SLP2DF02E5A01 |
0.4 |
| 1 |
0.04 |
0 |
30 |
30 |
25 |
120 |
D |
22 |
13 |
F |
SLP2DF02V9A01 |
SLP2DF02V5A01 |
0.4 |
| 1.5 |
0.09 |
0 |
20 |
20 |
15 |
80 |
D |
22 |
13 |
F |
SLP2DF02N9AC2 |
SLP2DF02N5AC2 |
0.4 |
| 1.5 |
0.09 |
0 |
20 |
20 |
|
130 |
D |
22 |
13 |
F |
SLP2DF02E9AC2 |
SLP2DF02E5AC2 |
0.4 |
| 1.5 |
0.09 |
0 |
20 |
20 |
15 |
120 |
D |
22 |
13 |
F |
SLP2DF02V9AC2 |
SLP2DF02V5AC2 |
0.4 |
| 2.5 |
0.2 |
0 |
15 |
15 |
12 |
80 |
D |
22 |
13 |
F |
SLP2DF02N9AC3 |
SLP2DF02N5AC3 |
0.4 |
| 2.5 |
0.2 |
0 |
15 |
15 |
|
130 |
D |
22 |
13 |
F |
SLP2DF02E9AC3 |
SLP2DF02E5AC3 |
0.4 |
| 2.5 |
0.2 |
0 |
15 |
15 |
12 |
120 |
D |
22 |
13 |
F |
SLP2DF02V9AC3 |
SLP2DF02V5AC3 |
0.4 |
| 3 |
0.25 |
0 |
12 |
12 |
10 |
80 |
D |
22 |
13 |
F |
SLP2DF02N9A03 |
SLP2DF02N5A03 |
0.4 |
| 3 |
0.25 |
0 |
12 |
12 |
|
130 |
D |
22 |
13 |
F |
SLP2DF02E9A03 |
SLP2DF02E5A03 |
0.4 |
| 3 |
0.25 |
0 |
12 |
12 |
10 |
120 |
D
|
22 |
13 |
F |
SLP2DF02V9A03 |
SLP2DF02V5A03 |
0.4 |
| 3 |
0.3 |
0 |
6 |
6 |
5 |
80 |
D |
22 |
20 |
F |
SLP2DF02N1A03 |
SLP2DF02N3A03 |
0.46 |
| 3 |
0.3 |
0 |
6 |
6 |
|
130 |
D |
22 |
13 |
F |
SLP2DF02E1A03 |
SLP2DF02E3A03 |
0.46 |
| 3 |
0.3 |
0 |
6 |
6 |
5 |
120 |
D |
22 |
13 |
F |
SLP2DF02V1A03 |
SLP2DF02V3A03 |
0.46 |
| 4 |
0.4 |
0 |
5 |
5 |
4 |
80 |
D |
22 |
13 |
F |
SLP2DF02N9A04 |
SLP2DF02N5A04 |
0.39 |
| 4 |
0.4 |
0 |
5 |
5 |
|
130 |
D |
22 |
13 |
F |
SLP2DF02E9A04 |
SLP2DF02E5A04 |
0.39 |
| 4 |
0.4 |
0 |
5 |
5 |
4 |
120 |
D |
22 |
13 |
F |
SLP2DF02V9A04 |
SLP2DF02V5A04 |
0.39 |
| 1/4” |
1 |
0.04 |
0 |
30 |
30 |
25 |
80 |
D |
22 |
13 |
F |
SLP2DF02N9B01 |
SLP2DF02N5B01 |
0.39 |
| 1 |
0.04 |
0 |
30 |
30 |
|
130 |
D |
22 |
13 |
F |
SLP2DF02E9B01 |
SLP2DF02E5B01 |
0.39 |
| 1 |
0.04 |
0 |
30 |
30 |
25 |
120 |
D |
22 |
13 |
F |
SLP2DF02V9B01 |
SLP2DF02E5B01 |
0.39 |
| 1.5 |
0.09 |
0 |
20 |
20 |
15 |
80 |
D |
22 |
13 |
F |
SLP2DF02N9BC2 |
SLP2DF02E5BC2 |
0.39 |
| 1.5 |
0.09 |
0 |
20 |
20 |
|
130 |
D |
22 |
13 |
F |
SLP2DF02E9BC2 |
SLP2DF02E5BC2 |
0.39 |
| 1.5 |
0.09 |
0 |
20 |
20 |
15 |
120 |
D |
22 |
13 |
F |
SLP2DF02V9BC2 |
SLP2DF02E5BC2 |
0.39 |
| 2.5 |
0.2 |
0 |
15 |
15 |
12 |
80 |
D |
22 |
13 |
F |
SLP2DF02N9BC3 |
SLP2DF02E5BC3 |
0.39 |
| 2.5 |
0.2 |
0 |
15 |
15 |
|
130 |
D |
22 |
13 |
F |
SLP2DF02E9BC3 |
SLP2DF02E5BC3 |
0.39 |
| 2.5 |
0.2 |
0 |
15 |
15 |
12 |
120 |
D |
22 |
13 |
F |
SLP2DF02V9BC3 |
SLP2DF02V5BC3 |
0.39 |
| 3 |
0.25 |
0 |
12 |
12 |
10 |
80 |
D |
22 |
13 |
F |
SLP2DF02N9B03 |
SLP2DF02N5B03 |
0.39 |
| 3 |
0.25 |
0 |
12 |
12 |
|
130 |
N |
22 |
13 |
F |
SLP2DF02E9B03 |
SLP2DF02E5B03 |
0.39 |
| 3 |
0.25 |
0 |
12 |
12 |
10 |
120 |
D |
22 |
13 |
F |
SLP2DF02V9B03 |
SLP2DF02V5B03 |
0.39 |
| 3 |
0.3 |
0 |
6 |
6 |
5 |
80 |
D |
22 |
13 |
F |
SLP2DF02N1B03 |
SLP2DF02N3B03 |
0.45 |
| 3 |
0.3 |
0 |
6 |
6 |
|
130 |
D |
22 |
13 |
F |
SLP2DF02E1B03 |
SLP2DF02E3B03 |
0.45 |
| 3 |
0.3 |
0 |
6 |
6 |
5 |
120 |
D |
22 |
13 |
F |
SLP2DF02V1B03 |
SLP2DF02V3B03 |
0.45 |
| 4 |
0.4 |
0 |
5 |
5 |
4 |
80 |
D |
22 |
13 |
F |
SLP2DF02N9B04 |
SLP2DF02N5B04 |
0.38 |
| 4 |
0.4 |
0 |
5 |
5 |
|
130 |
D |
22 |
13 |
F |
SLP2DF02E9B04 |
SLP2DF02E5B04 |
0.38 |
| 4 |
0.4 |
0 |
5 |
5 |
4 |
120 |
D |
22 |
13 |
F |
SLP2DF02V9B04 |
SLP2DF02V5B04 |
0.38 |
