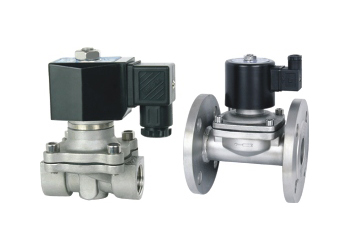

ZS不銹鋼系列二位二通零壓差電磁閥<常閉型>
二位二通常閉型電磁閥,斷電關閉,通電打開
閥體材質為銅,SS304不銹鋼,SS316不銹鋼
最大耐壓力16kgf/cm/2 環境溫度:0℃～65℃
產品為系列化生產,體積小,流量大,適用范圍廣
按閥上所標流向箭頭,可任意安裝;為增強使用壽命,最好線圈向上,水平安裝
電壓：AC220V/230V/240V/110V/24V 50/60HZ DC24V/12V +10%到-10%允許波動 DN25以下電磁閥可選配德國NASS線圈
常規備貨：AC220V/230V/240V 50/60HZ、DC24V膜片、密封件，可采用NBR、VITON、EPDM等多種，以適用不同流體的開關控制
型號規格
接管
口徑 |
流量
通徑
mm |
CV值 |
壓力差（Kgf/cm2) |
最大
流體
溫度 |
線圈 |
功率 |

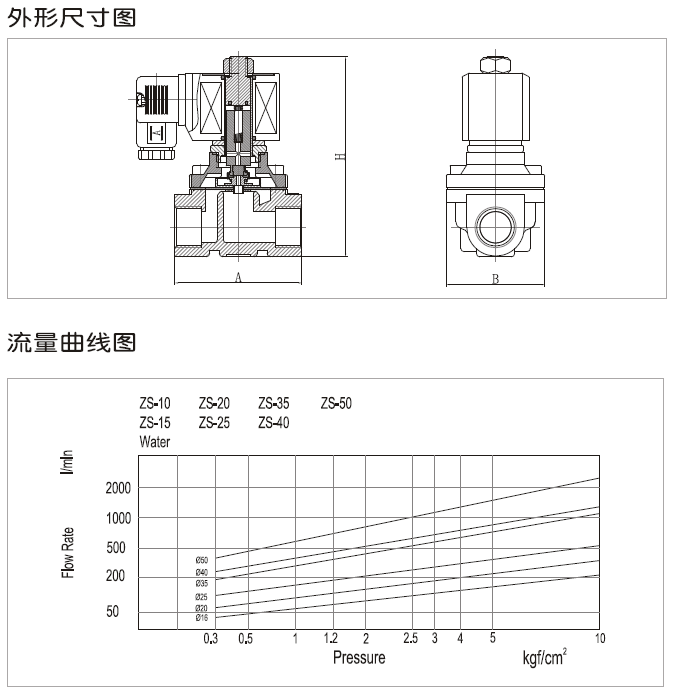

外行尺寸
長×寬×高
A×B×H
|
重量KG |
訂貨型號
以下表中
電壓為
220VAC
50/60HZ
|
| 最小壓力 |
最大工作壓力 |
空氣
瓦斯 |
水、熱
水液體 |
輕油 |
F 級 |
VA |
W |
| AC |
DC |
AC |
DC |
AC |
DC |
配置 |
AC220V |
DC24V |
| 3/8” |
16 |
4.8 |
0 |
10 |
6 |
10 |
6 |
7 |
4 |
80 |
D |
33 |
20 |
69×57×106 |
0.8 |
ZS1DF02N4C16 |
| 16 |
4.8 |
0 |
10 |
6 |
10 |
6 |
|
|
120 |
D |
33 |
20 |
69×57×106 |
0.8 |
ZS1DF02E4C16 |
| 16 |
4.8 |
0 |
10 |
6 |
10 |
6 |
7 |
4 |
120 |
D |
33 |
20 |
69×57×106 |
0.8 |
ZS1DF02V4C16 |
| 16 |
4.8 |
0 |
|
|
3 |
3 |
|
|
120 |
D |
33 |
20 |
69×57×106 |
0.8 |
ZS1DF02G4C16 |
| 1/2” |
16 |
4.8 |
0 |
10 |
6 |
10 |
6 |
7 |
4 |
80 |
D |
33 |
20 |
69×57×106 |
0.85 |
ZS1DF02N4D16 |
| 16 |
4.8 |
0 |
10 |
6 |
10 |
6 |
|
|
120 |
D |
33 |
20 |
69×57×106 |
0.85 |
ZS1DF02E4D16 |
| 16 |
4.8 |
0 |
10 |
6 |
10 |
6 |
7 |
4 |
120 |
D |
33 |
20 |
69×57×106 |
0.85 |
ZS1DF02V4D16 |
| 16 |
4.8 |
0 |
|
|
3 |
3 |
|
|
120 |
D |
33 |
20 |
69×57×106 |
0.85 |
ZS1DF02G4D16 |
| 3/4” |
20 |
7.6 |
0 |
10 |
6 |
10 |
6 |
7 |
4 |
80 |
D |
33 |
20 |
73×57×114 |
1.1 |
ZS1DF02N4E20 |
| 20 |
7.6 |
0 |
10 |
6 |
10 |
6 |
|
|
120 |
D |
33 |
20 |
73×57×114 |
1.1 |
ZS1DF02E4E20 |
| 20 |
7.6 |
0 |
10 |
6 |
10 |
6 |
7 |
4 |
120 |
D |
33 |
20 |
73×57×114 |
1.1 |
ZS1DF02V4E20 |
| 20 |
7.6 |
0 |
|
|
3 |
3 |
|
|
120 |
D |
33 |
20 |
73×57×114 |
1.1 |
ZS1DF02G4E20 |
| 1” |
25 |
12 |
0 |
10 |
6 |
10 |
6 |
7 |
4 |
80 |
D
|
33 |
20 |
99×77×121 |
1.45 |
ZS1DF02N4G25 |
| 25 |
12 |
0 |
10 |
6 |
10 |
6 |
|
|
120 |
D |
33 |
20 |
99×77×121 |
1.45 |
ZS1DF02E4G25 |
| 25 |
12 |
0 |
10 |
6 |
10 |
6 |
7 |
4 |
120 |
D |
33 |
20 |
99×77×121 |
1.45 |
ZS1DF02V4G25 |
| 25 |
12 |
0 |
10 |
6 |
3 |
3 |
|
|
120 |
D |
33 |
20 |
99×77×121 |
1.45 |
ZS1DF02G4G25 |
| 11/4” |
32 |
24 |
0 |
10 |
6 |
10 |
6 |
7 |
4 |
80 |
D |
70 |
40 |
112×86.5×150 |
2.3 |
ZS1DF02N4H32 |
| 32 |
24 |
0 |
10 |
6 |
10 |
|
|
|
120 |
D |
70 |
40 |
112×86.5×150 |
2.3 |
ZS1DF02E4H32 |
| 32 |
24 |
0 |
10 |
6 |
10 |
6 |
7 |
7 |
120 |
D |
70 |
40 |
112×86.5×150 |
2.3 |
ZS1DF02V4H32 |
| 11/2” |
40 |
29 |
0 |
10 |
6 |
10 |
6 |
7 |
4 |
80 |
D |
70 |
40 |
123×94×160 |
2.9 |
ZS1DF02N4J40 |
| 40 |
29 |
0 |
10 |
6 |
10 |
|
|
|
120 |
D |
70 |
40 |
123×94×160 |
2.9 |
ZS1DF02E4J40 |
| 40 |
29 |
0 |
10 |
6 |
10 |
6 |
7 |
7 |
120 |
D |
70 |
40 |
123×94×160 |
2.9 |
ZS1DF02V4J40 |
| 2” |
50 |
48 |
0 |
10 |
6 |
10 |
6 |
7 |
4 |
80 |
D |
70 |
40 |
168×123×183 |
4.8 |
ZS1DF02N4K50 |
| 50 |
48 |
0 |
10 |
|
10 |
6 |
|
|
120 |
D |
70 |
40 |
168×123×183 |
4.8 |
ZS1DF02E4K50 |
| 50 |
48 |
0 |
10 |
6 |
10 |
6 |
7 |
4 |
120 |
D |
70 |
40 |
168×123×183 |
4.8 |
ZS1DF02V4K50 |
| 法蘭4孔連接 |
25 |
12 |
0 |
10 |
6 |
10 |
6 |
7 |
4 |
80 |
D |
33 |
20 |
140×115×160 |
2.9 |
ZS1DF02N4F25 |
| 25 |
12 |
0 |
10 |
6 |
10 |
|
|
|
120 |
D |
33 |
20 |
140×115×160 |
2.9 |
ZS1DF02E4F25 |
| 25 |
12 |
0 |
10 |
6 |
10 |
6 |
7 |
4 |
120 |
D |
33 |
20 |
140×115×160 |
2.9 |
ZS1DF02V4F25 |
| 32 |
24 |
0 |
10 |
6 |
10 |
6 |
7 |
4 |
80 |
D |
70 |
40 |
152×135×215 |
5.1 |
ZS1DF02N4F32 |
| 32 |
24 |
0 |
10 |
6 |
10 |
|
|
|
120 |
D |
70 |
40 |
152×135×215 |
5.1 |
ZS1DF02E4F32 |
| 32 |
24 |
0 |
10 |
6 |
10 |
6 |
7 |
4 |
120 |
D |
70 |
40 |
152×135×215 |
5.1 |
ZS1DF02V4F32 |
| 40 |
29 |
0 |
10 |
6 |
10 |
6 |
7 |
|
80 |
D |
70 |
40 |
152×145×215 |
6.1 |
ZS1DF02N4F40 |
| 40 |
29 |
0 |
10 |
6 |
10 |
|
|
|
120 |
D |
70 |
40 |
152×145×215 |
6.1 |
ZS1DF02E4F40 |
| 40 |
29 |
0 |
10 |
6 |
10 |
6 |
7 |
|
120 |
D |
70 |
40 |
152×145×215 |
6.1 |
ZS1DF02V4F40 |
| 50 |
48 |
0 |
10 |
6 |
10 |
6 |
7 |
4 |
80 |
D |
70 |
40 |
195×160×220 |
8.2 |
ZS1DF02N4F50 |
| 50 |
48 |
0 |
10 |
6 |
10 |
6 |
|
|
120 |
D |
70 |
40 |
195×160×220 |
8.2 |
ZS1DF02E4F50 |
| 50 |
48 |
0 |
10 |
6 |
10 |
6 |
7 |
4 |
120 |
D |
70 |
40 |
195×160×220 |
8.2 |
ZS1DF02V4F50 |
