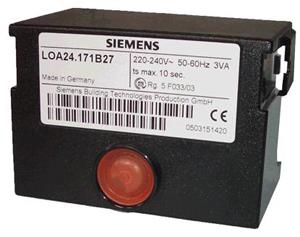

| LOA24系列燃油燃燒器控制器
品牌：SIEMENS（西門子）
產地：德國
|
| 產品介紹 |
|
Oil burner controls for the supervision, startup and control of single- or twostage oil burners with an oil throughput of up to 30 kg/h in intermittent operation. The LOA2... / LOA3... and this data sheet are intended for use by OEMs which integrate the oil burner controls in their products.
-
Oil burners with / without oil pre-heaters
-
Forced draught oil burners conforming to EN 267, with an oil throughput of up to 30 kg/h
-
Oil atomization burners as monoblocks conforming to EN 230, with an oil throughput of up to 30 kg/h
-
Special versions including models for incinerator plants and flash-steam generators
|
| 型號表 |
| 型號 |
額定電壓 |
工作時間 |
類似型號 |
| t1 |
t3 |
TSAm |
t3n |
t3n’ |
t4 |
| LOA24.171B27 |
AC220V |
13s |
13s |
10s |
15s |
- |
15s |
LAI2.3 |
| LOA24.171B17 |
AC110V |
13s |
13s |
10s |
15s |
- |
15s |
LAI2.3 |
| LOA24.173A27 |
AC220V |
13s |
13s |
10s |
20s |
2 |
20s |
LAI2.3 |
| LOA24.174A27 |
AC220V |
13s |
13s |
10s |
35s |
2 |
35s |
- |
| LOA26.171B27 |
AC220V |
13s |
13s |
10s |
15s |
- |
15s |
- |
| LOA36.171A27 |
AC220V |
13s |
13s |
10s |
15s |
- |
15s |
- |
| LOA24.571C27 |
AC220V |
6s |
6s |
10s |
20s |
- |
20s |
LAI5 |
| LOA25.173C27 |
AC220V |
13s |
13s |
10s |
2s |
- |
15s |
LAB2 |
| LOA25.173C17 |
AC110V |
13s |
13s |
10s |
2s |
- |
15s |
- |
| LOA28.173A27 |
AC220V |
13s |
13s |
10s |
2s |
- |
15s |
- |
| TSAm:最大點火安全時間 |
| t1:預吹掃時間 |
| t3:預點火時間 |
| t3n:長點火過程時間 |
| t3n’:短點火過程時間 |
| t4:從火焰信號到釋放的內部循環時間 |
|
|
| 技術參數 |
| 主要參數 |
| 主電壓 |
AC220V -15%...AC240V +10% |
| AC100V -15%...AC110V +10% |
| 主頻率 |
50...60Hz ±6% |
| 外部保險絲 |
10A |
| 功率 |
3VA |
| 重量 |
180g |
| 保護等級 |
IP40 |
| 額定電流 |
|
| 端子1 |
5A(可在0.5S內到15A） |
| 端子3 |
5A |
|
| 額定電流 |
端子4 |
端子5 |
端子6 |
端子7 |
端子8 |
端子10 |
|
LOA24.171B27
|
1A |
1A |
2A |
2A |
5A |
1A |
|
LOA24.171B17
|
1A |
1A |
2A |
2A |
5A |
1A |
|
LOA24.571C27
|
1A |
1A |
2A |
2A |
5A |
1A |
|
LOA25.173C27
|
1A |
1A |
2A |
2A |
5A |
1A |
|
LOA25.173C17
|
1A |
1A |
2A |
2A |
5A |
1A |
| LOA28.173A27 |
1A |
1A |
2A |
2A |
5A |
1A |
|
LOA24.173A27
|
1A |
1A |
2A |
1.5A |
5A |
1A |
| LOA24.174A27 |
1A |
1A |
2A |
1.5A |
5A |
1A |
| LOA26.171B27 |
1A |
1A |
2A |
0.1A |
5A |
1A |
| LOA36.171A27 |
1A |
1A |
2A |
0.1A |
5A |
1A |
|
|
|
| 環境條件 |
| 運輸環境 |
IEC 721-3-2 |
| 內部條件 |
class 2K2 |
| 溫度范圍 |
-50...+60ºC |
| 濕度 |
<95% |
| 運行環境 |
IEC 721-3-3 |
| 內部條件 |
class 3K5 |
| 機械條件 |
class 2M2 |
| 溫度范圍 |
-20...+60ºC |
| 濕度 |
<95% |
| 不得進水 |
|
|
