鑄鐵125FCJ 125FCJS 10FCJ截止閥
|
 |
| PN16 |

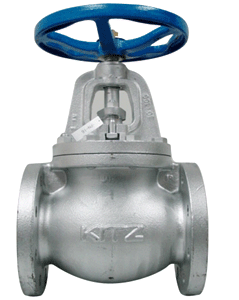

鑄鐵法蘭截止閥(明桿式) KITZ 北澤 |
| Cast lron Globe Valve (Outside screw & yoke.rising stem) Flenged ends |
|
|
|
|
最高工作壓力
| 120℃壓力變動小的水、油、氣 |
1.6MPa(16bar) |
| 飽和蒸氣 |
0.9MPa(9bar) |
材質[Materials]
| 零件[Parts] |
材質 |
| 閥體[Body] |
灰鑄鐵 |
| 閥蓋[Bonnet] |
灰鑄鐵 |
| 閥桿[stem] |
黃銅*1 13%Cr不銹鋼*2 |
| 閥瓣[Disc] |
青銅(125FCJ DN50)
13%Cr不銹鋼(125FCJ DN50)
灰鑄鐵(DN65以上) |
| 填料[Gland packing] |
非石棉 |
| 墊片[Gasket] |
非石棉 |
| 閥體防漏墊圈[Body seatring] |
青銅*1 13%Cr不銹鋼*2 |
| 閥座防漏墊圈[Disc seatring] |
青銅*1 13%Cr不銹鋼*2 |
| 手輪[Handwheel] |
灰鑄鐵[DN50-DN150]
球墨鑄鐵[DN200] |
尺寸 [Dimensions] (mm)
| DN |
mm |
|
| inch |
|
| L |
| 203 |
216 |
241 |
292 |
330 |
356 |
495 |
|
|
|
|
|
| H (全開) |
| 277 |
307 |
353 |
404 |
454 |
533 |
642 |
|
|
|
|
|
| D |
| 180 |
180 |
225 |
280 |
300 |
350 |
450 |
|
|
|
|
|
|
| JIS 10K |
鑄鐵法蘭截止閥(明桿式) KITZ 北澤 |
| Cast lron Globe Valve (Outside screw & yoke.rising stem) Flenged ends |
|
|
|
|
最高工作壓力
| 120℃均衡水流 |
1.37MPa(13.7bar) |
| 120℃水、油、氣 |
0.98MPa(9.8bar) |
| 120℃氣 |
0.20MPa(2.0bar) |
| 飽和蒸氣 |
0.69MPa(6.9bar) |
材質[Materials]
| 零件[Parts] |
材質 |
| 閥體[Body] |
灰鑄鐵 |
| 閥蓋[Bonnet] |
灰鑄鐵 |
| 閥桿[stem] |
黃銅*1 13%Cr*2
304型*3不銹鋼 |
| 閥瓣[Disc] |
青銅*1 13%Cr*2
304型*3不銹鋼
(DN40-DN50)/灰鑄鐵(DN65以上) |
| 填料[Gland packing] |
非石棉 |
| 墊片[Gasket] |
非石棉 |
| 閥體防漏墊圈[Body seatring] |
青銅*1 13%Cr*2
304型*3不銹鋼 |
| 閥座防漏墊圈[Disc seatring] |
青銅*1 13%Cr*2
304型*3不銹鋼 |
| 手輪[Handwheel] |
鋅(壓鑄)[DN8-DN40] 鋁(壓鑄)[DN50以上] |
尺寸 [Dimensions] (mm)
| DN |
mm |
| 40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
|
|
| inch |
| 11/2 |
2 |
21/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
|
|
| L |
| 190 |
200 |
220 |
240 |
290 |
360 |
410 |
500 |
620 |
700 |
|
|
| H (全開) |
| 260 |
277 |
307 |
353 |
404 |
454 |
533 |
642 |
665 |
883 |
|
|
| D |
| 160 |
180 |
180 |
225 |
280 |
300 |
350 |
450 |
450 |
500 |
|
|
|
| PN16 |

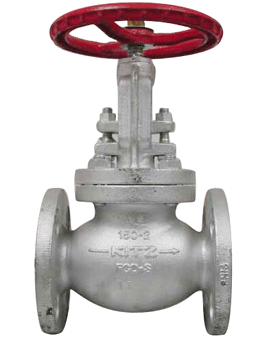

球墨鑄鐵法蘭截止閥(明桿式) KITZ 北澤 |
| Ductile lton Globe valve (Outside screw & risiing stem)Flanged ends |
|
|
|
|
最高工作壓力
| -5℃～38℃水、油、氣 |
1.73MPa(17.3bar) |
| 149℃水、油、氣 |
1.48MPa(14.8bar) |
| 260℃水、油、氣 |
1.18MPa(11.8bar) |
| 343℃水、油、氣 |
0.87MPa(8.7bar) |
材質[Materials]
| 零件[Parts] |
材質 |
| 閥體[Body] |
球墨鑄鐵 |
| 閥蓋[Bonnet] |
球墨鑄鐵 |
| 閥桿[stem] |
13%Cr不銹鋼 |
| 閥瓣[Disc] |
13%Cr不銹鋼 |
| 填料[Gland packing] |
非石棉 |
| 墊片[Gasket] |
非石棉 |
| 閥體防漏墊圈[Body seatring] |
13%Cr不銹鋼 |
| 手輪[Handwheel] |
球墨鑄鐵 |
尺寸 [Dimensions] (mm)
| DN |
mm |
|
| inch |
|
| L |
| 203 |
216 |
241 |
292 |
356 |
406 |
495 |
|
| H (全開) |
| 302 |
313 |
356 |
377 |
460 |
527 |
600 |
|
| D |
| 200 |
225 |
250 |
250 |
300 |
350 |
400 |
|
|
| 10K |
球墨鑄鐵法蘭截止閥 KITZ 北澤 |
| 10K Glove Valve for LAN Service Malleable lron Bonnet |
|
|
|
|
最高工作壓力
| 120℃靜壓水 |
1.37MPa(13.7bar) |
| 220℃蒸氣、空氣、氣體、油 |
1.18MPa(11.8bar) |
| 300℃蒸氣、空氣、氣體、油 |
0.98MPa(9.8bar) |
材質[Materials]
| 零件[Parts] |
材質 |
| 閥體[Body] |
球墨鑄鐵 |
| 閥蓋[Bonnet] |
球墨鑄鐵 |
| 閥桿[stem] |
13%Cr不銹鋼 |
| 閥瓣[Disc] |
13%Cr不銹鋼 |
| 填料[Gland packing] |
非石棉 |
| 墊片[Gasket] |
C1100P-0 |
| 閥體防漏墊圈[Body seatring] |
13%Cr不銹鋼 |
| 手輪[Handwheel] |
灰鑄鐵(DN50為球墨鑄鐵) |
尺寸 [Dimensions] (mm)
| DN |
mm |
|
| inch |
| 3/8 |
1/2 |
3/4 |
1 |
11/4 |
11/2 |
2 |
|
| L |
| 108 |
108 |
117 |
127 |
140 |
165 |
200 |
|
| H (全開) |
| 111 |
122 |
128 |
147 |
165 |
182 |
198 |
|
| D |
|
|
|
